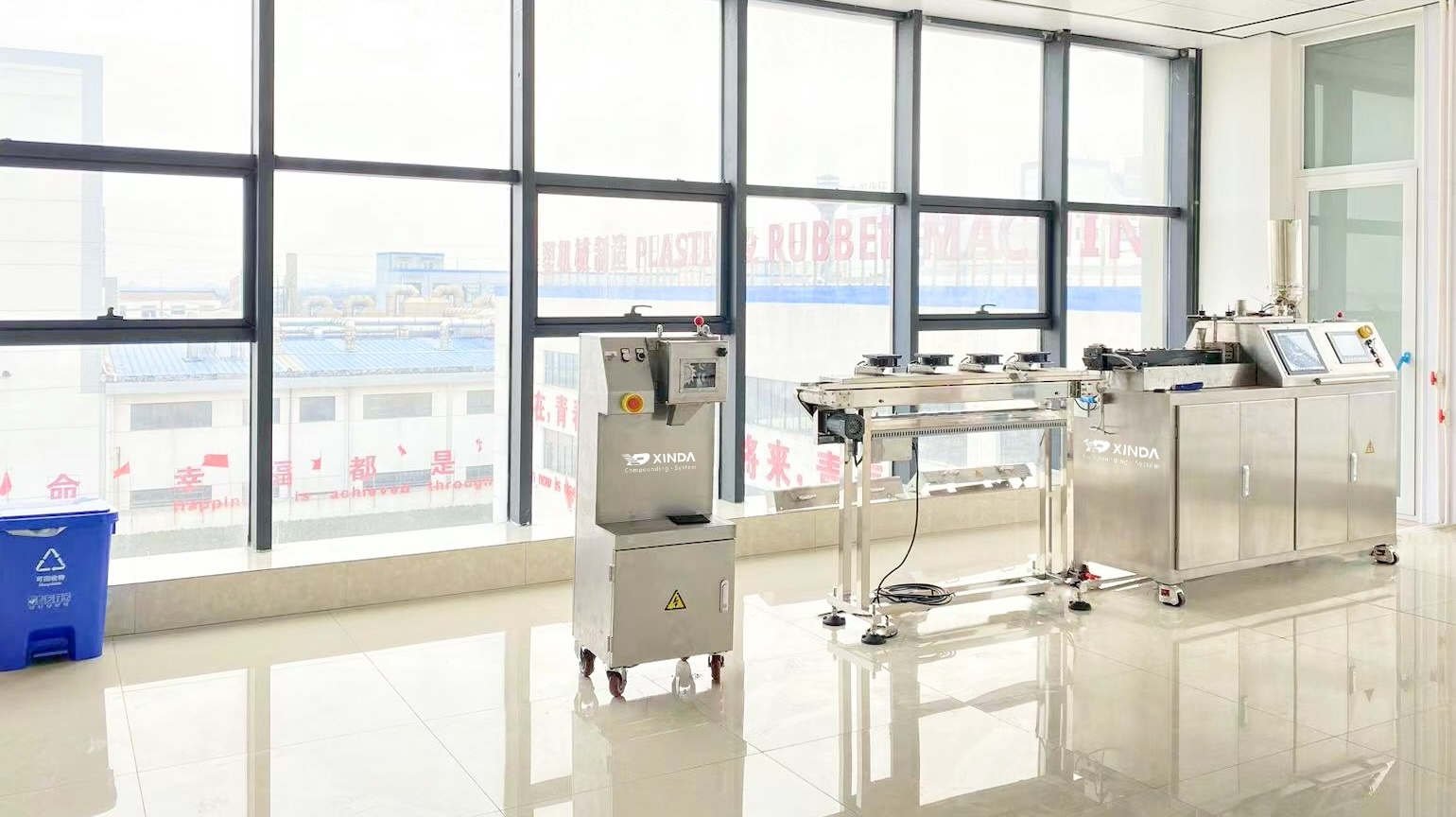

Lab use twin screw extruder

Parallel Co-rotating, Clam Shell Barrel, Segmented design

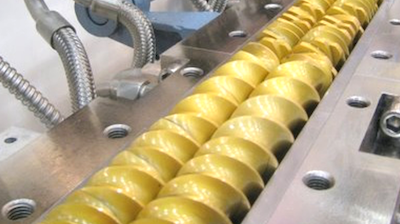

It is equipped with segmented screws that can be quickly reconfigured to meet your specific needs, Its “clamshell” design makes screw changes and cleanout quick and easy, adding to its versatility.

Xinda clam shell twin screw extruder

Technical Data

Lab use extruder info

PSHJ-20 and PSHJ-35 is avaliable with barrel length of 28~48L/D. The barrel is divided horizontally, allowing visual assessment of individual processing steps which is ideally suited for research and development application.

PSHJ-20 and PSHJ-35 twin screw technology allows for optimum application adaptation to range from laboratroy and small-scale production to include all processing tasks relevant to various polymers.

The harmonized modular conception of screws and barrels for optimally realizing all processing steps (feeding, conveying, plasticizing, dispersing, reacting, venting, pressure build-up).

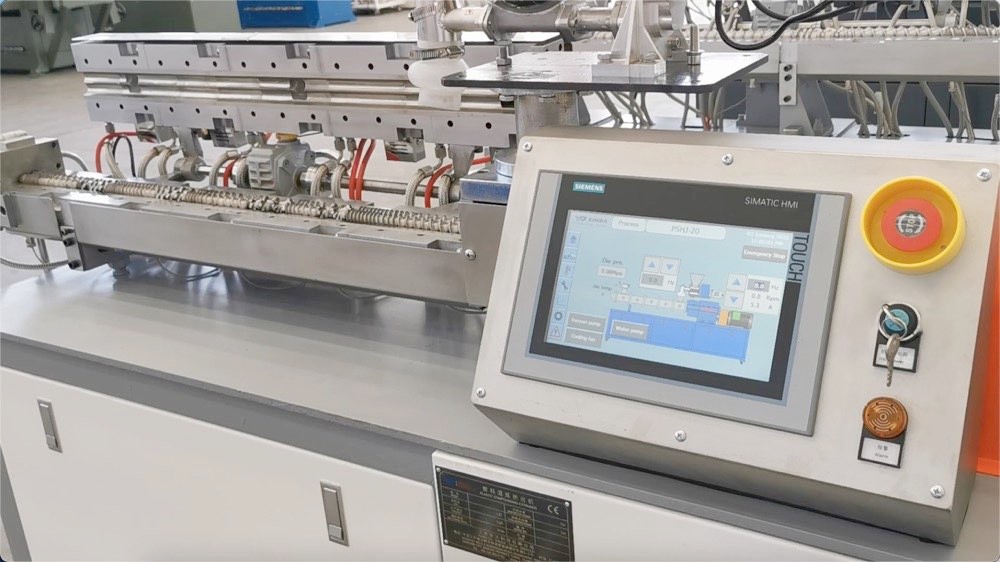

Lab use extruder 01
Lab use extruder 02

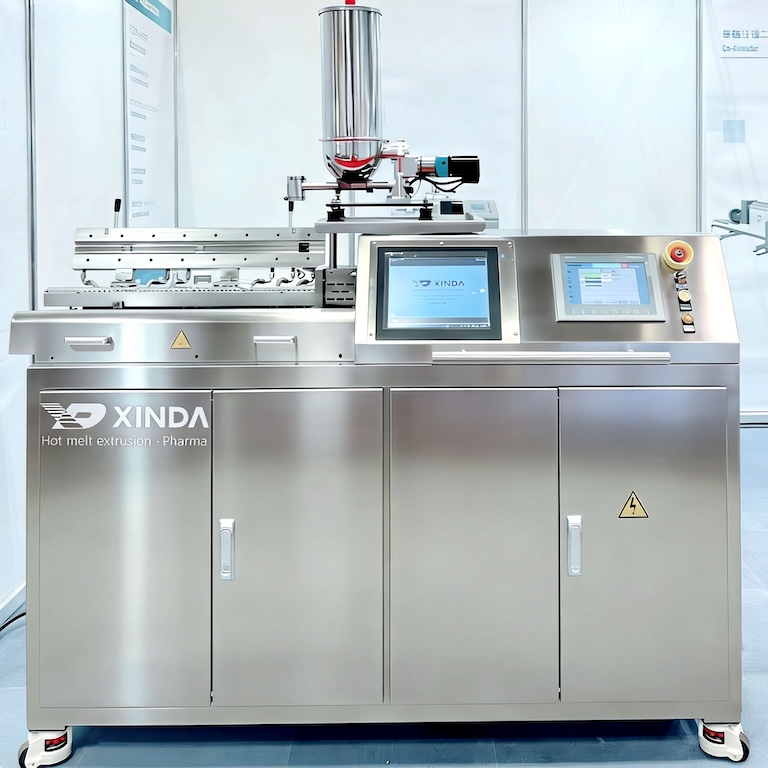

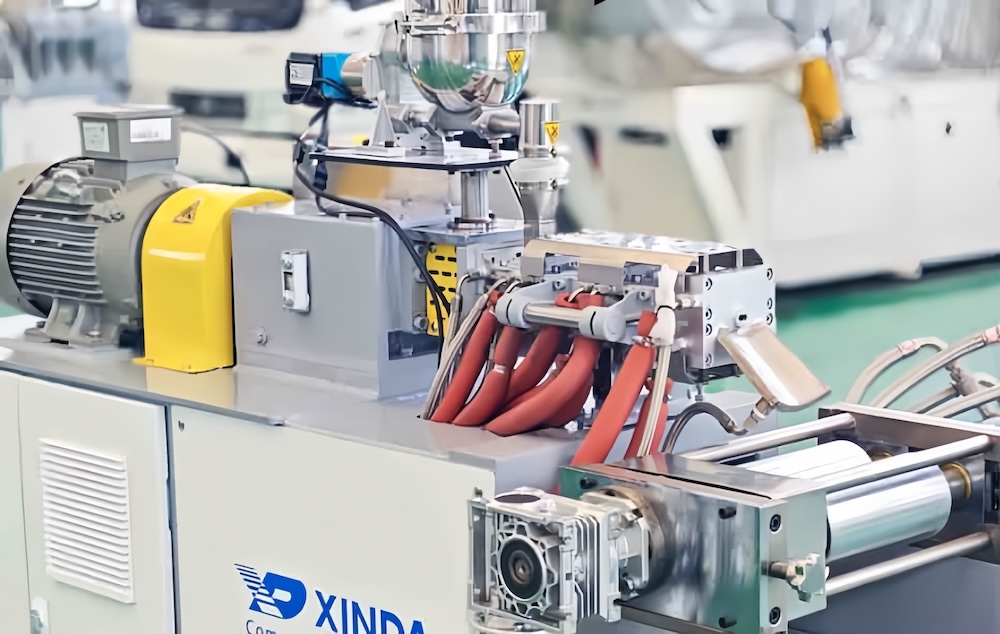

lab use twin screw extruder

Lab use Co-Kneader extruder

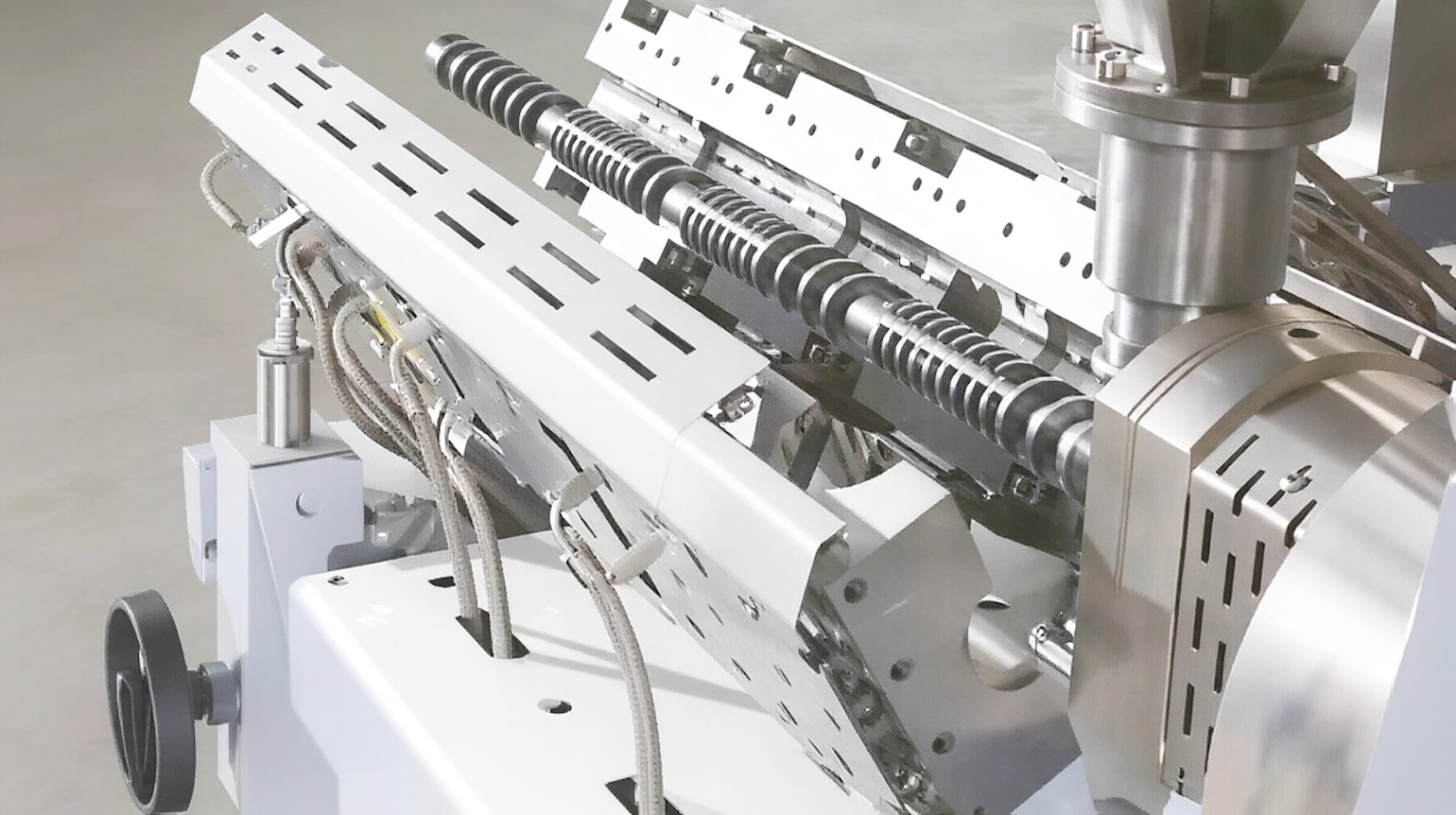

SJW-45 CO-KNEADER: A great helper with your R&D.

The specific benefits of Co-Kneaders:

  • Products prone to polymer degradation
  • Products prone to physical rupture
  • Products requiring high filler loading capacity
  • High viscous materials

Main Features of Co-Kneaders:

  • Controlled and equal shear mixing
  • Highly effective distributive mixing efficiency
  • High filler loading capacity
  • Accurate temperature control
  • Narrow residence time distribution
  • Effective feeding of liquids
lab use twin screw extruder

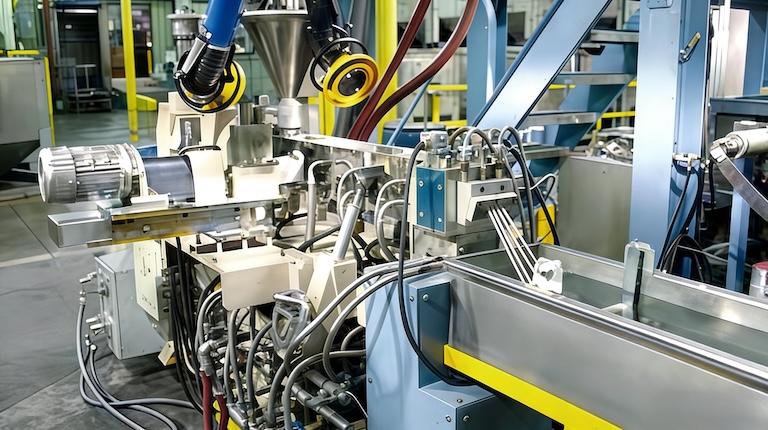

SJW-45 Co-Kneader line in the USA

Technical dates:

  • Screw diameter: 45mm
  • Oscillating stroke: 6.75mm
  • L/D: 12~20
  • Max. Speed: 500 rpm
  • Main motor: 22KW
  • Heating: Electricity
  • Cooling: water
  • Heating and cooling Zone: 5 Zons
  • Dimension: 3220*1500*1700mm
  • Weight: 2000KG

Other equipment: Volumetric feeder, Side feeder, Vacumm pump, Circular cooling system, Screen changer, Mould, Pelletizing System.

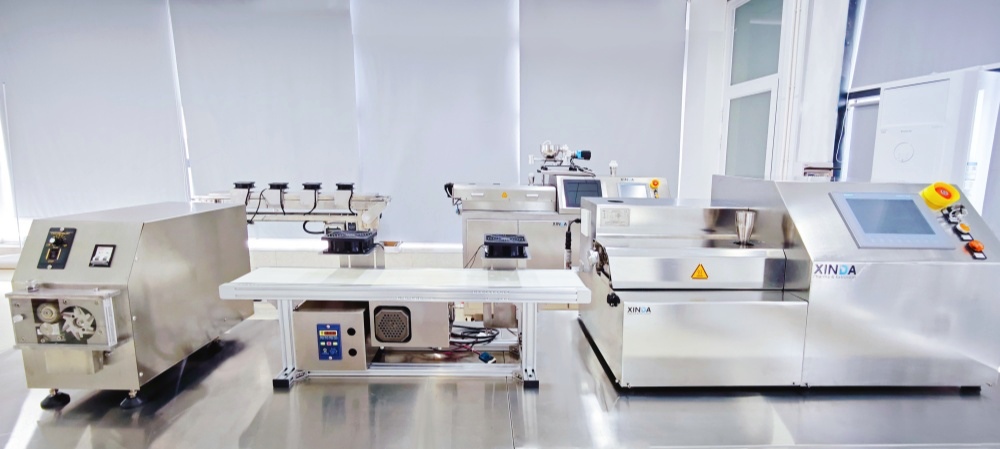

Xinda Lab Use Extruder

VideoVideo Button

PSHJ-20 for Pharmaceutical Production

VideoVideo Button

Clam Shell Twin Screw Extruder PSHJ-35

VideoVideo Button
