XINDA Co-Kneader

CO-KNEADERS — Compounding Expert

LOW SHEAR, LOW PRESSURE, LOW TEMPERATURE BUT HIGH KNEADING EFFICIENCY FOR YOUR COMPOUNDING NEEDS

The Co-Kneader, a low-shear rotating and reciprocating single-screw extruder is designed for shear and temperature sensitive compounds. The flights on the screw are interrupted and interact with three rows of stationary kneading pins located in the barrel wall. The interaction between the moving flights and the stationary pins provide dispersive and distributive mixing simultaneously.

The Co-Kneader is different from traditional single or twin screw extruders because of its unique mechanisms. The spiral of the kneading screw is detached three times at the circumference. In those gaps are the stationary kneading pins, which are fixed inside the kneading case. While the screw is circumrotate, so too does the axis, moving reciprocally.

Unique Working Principle

During this process, the material is not only sheared between the pins and kneading flights, but also inverted. This working process is totally different from traditionally single or twin screw extruders. It improves the effectiveness of kneading by moving transversely and lengthways. As such, it can provide high-quality dispersive and distributive mixing. In addition, by using suitable breechblock, the pressure remains relatively steady.

With circular water cooling system both inside the barrels and screw, the processing temperature is controlled accurately and much lower than the other machines because the materials are processed while they are intenerated, not completely melted. Accordingly, there will be less material disassembled and the quality of the final products will be the best.

Advantage of Co-kneader

  • Lower energy input, lower melt temperatures.
  • Extremely homogenous mixing, no shear spikes, equal treatment of polymer matrix.
  • High degree of self-wiping and have no dead spot.
  • Dispersive mixing without destroying delicate fillers.
  • High volumetric loadings of fillers and additives.
  • Efficient blending of liquid components.
  • Broad application for compounding without changing hardware.
  • Axially opened split barrel guarantees ease of cleaning and fast maintenance.
  • Replacement parts, such as screws, barrel lining and pins can be changed individually.

Co-Kneader Family

Application

The design of the SJW Reciprocating extruder incorporates optimized process and production solutions for the following applications:

  • Wire & Cable Insulation
  • Masterbatch / Concentrates
  • Engineered Thermoplastics
  • Engineered Elastomers
  • Thermoset
  • Flame Retardants
  • PVC Compounding
  • Powder Coatings and Toner

Co-Kneader Details

Type: SJW, SKW, WKS
Screw diameter: 45mm~200mm
Main Motor: 22kW~400kW
Capacity: 50~4000kg/hour
Application: Various industry
Control system: PLC auto control

Co-Kneader Introduction

VideoVideo Button

We Reply Within 8 Hours

    worker

    Contact Us

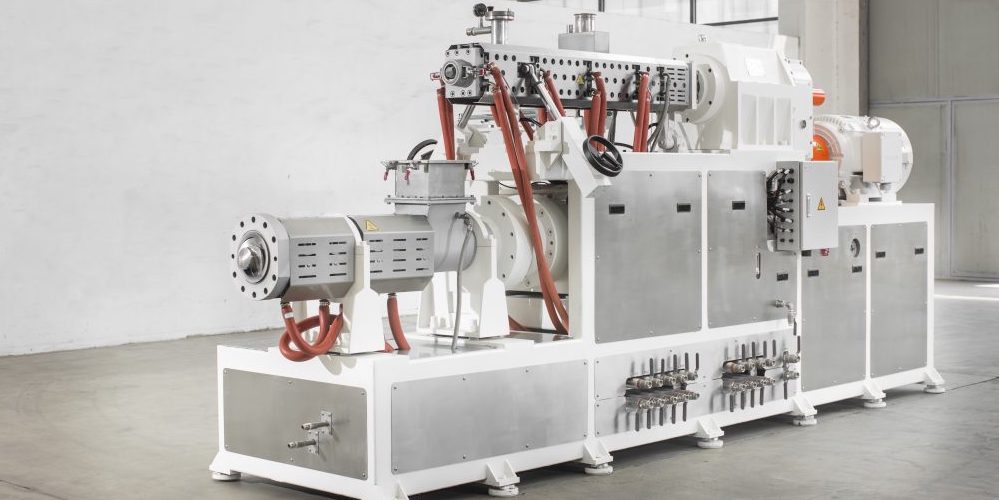

    Photos of Xinda Co-Kneader
